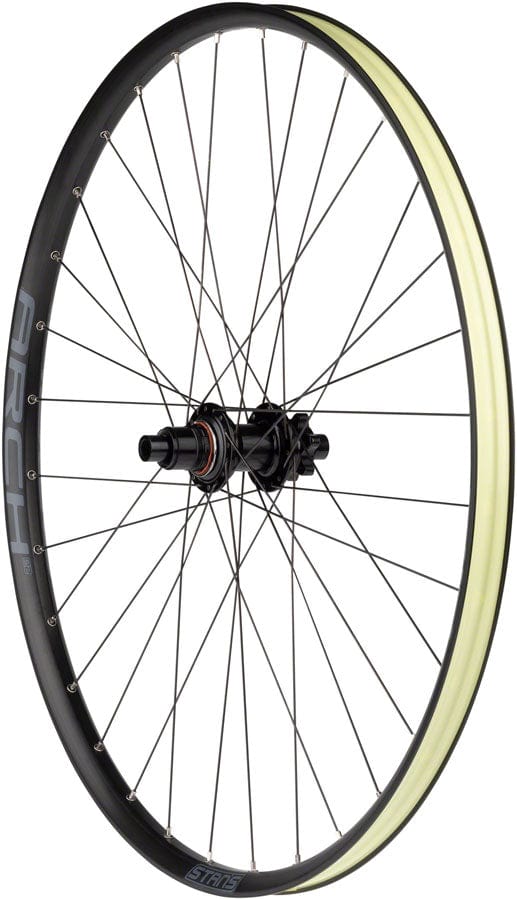

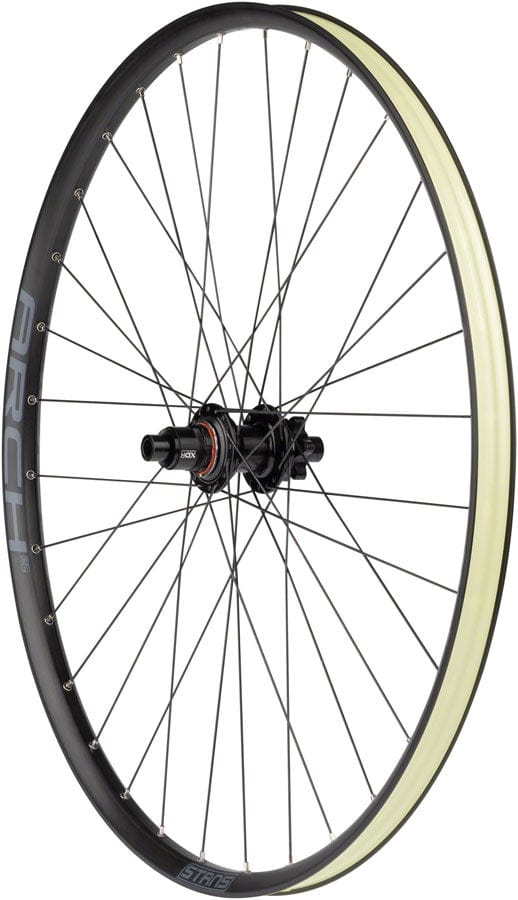

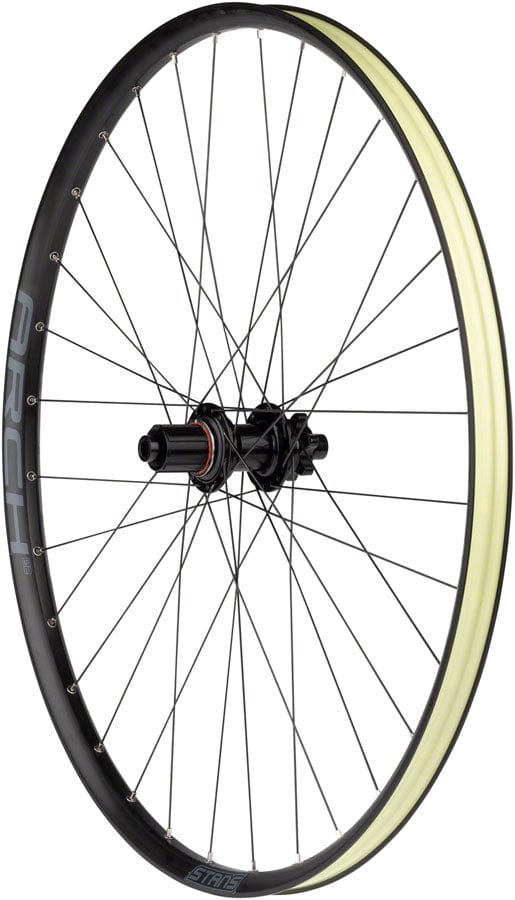

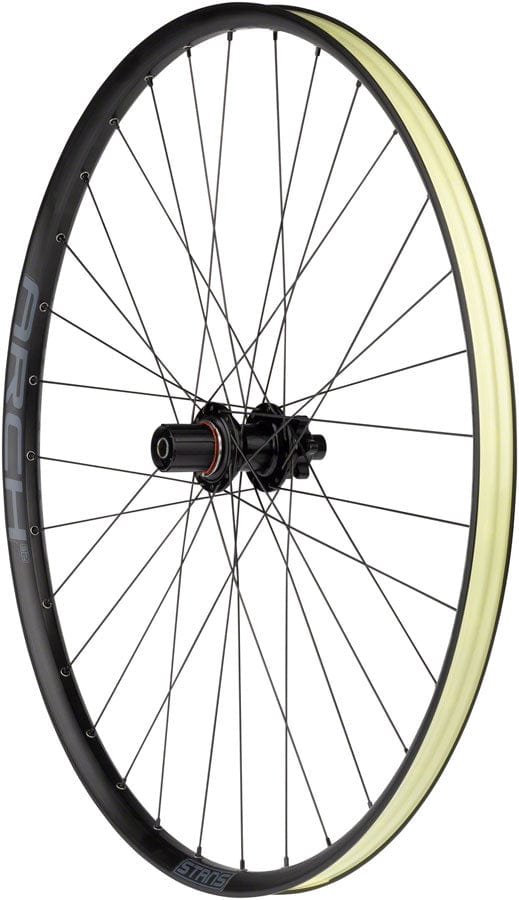

Arch S2 wheelsets have the versatility to handle a wide range of riding conditions and are the ideal upgrade for Trail AM Enduro and eBikes. When your average ride includes both tough climbs and rough descents and you want the best tubeless system in the business the Arch S2 is for you.Versatile 28mm internal rim width optimized for 2.2-2.5” tires 6061 aluminum with sleeved joint and stainless steel rim eyelets Patented BST low-profile rim shape for easy tubeless inflation and the most reliable seal Matched wheelsets use traditional J-bend lacing and share a single spoke length for easy serviceability E-sync hubs offer fast 8.18 deg engagement with reinforced pawls Enduro bearings with double-row freehub bearing and cromoly axle offer 47% increase in max torque capacity over Neo hubs Connection program includes 3-year E-sync hub warranty 3-year S2 rim warranty 1-year crash replacement and $10 donation to trail maintenance or advocacy group of your choice Tubeless tape installed requires additional valve stems
| Rear Axle | 12mm Thru x 142mm, 12mm Thru x 148mm |
| Cassette Body Type | Shimano HG, SRAM XDR |
| Valve | Presta |
| Wheel Size | 27.5", 29" |
| Designed for ebike | Yes |
| Defined Color | Black |
| ISO Diameter | 584 / 650b / 27.5", 622 / Road / 29" |
| Tire Type | Tubeless Ready |
| Hub/Brake Compatibility | 6-Bolt Disc |
| Rim Width (Internal) | 28 |
| Color | Black |
| Rim Material | Alloy |
