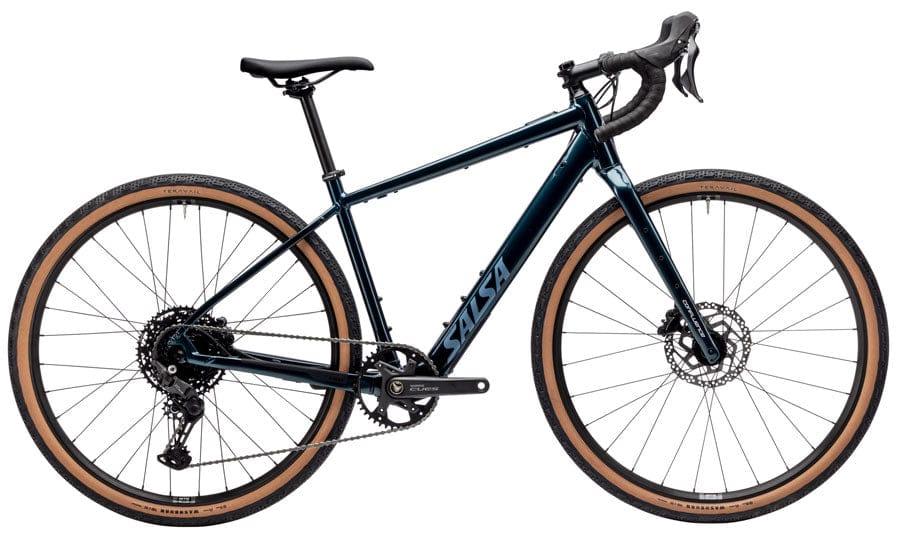

The Confluence is a light electric gravel bike designed to bring confidence to riders who want to squeeze more adventure into each day. Whether it is exploring tempting side roads or lowering the stakes on long gravel overnighters, this platform empowers you to go further. Featuring a versatile aluminum frame and a carbon fork, it provides a stable and comfortable geometry that maintains the clean look of a traditional bicycle. With a powerful hub-drive system delivering 45Nm of torque, the Confluence is where capability meets convenience.
- 6061-T6 alloy frame with Confluence 2.0 carbon fork
- Suspension corrected for 40mm gravel suspension forks
- Mahle X30 Class 1 (20mph/32kph assist) hub-drive system
- 45Nm max torque
- 237Wh MAHLE iX2 internal battery in downtube
- Capable of up to 421Wh with MAHLE’S External Battery Ex1 171Wh range extender (sold separately)
- HMI compact remote top tube controller
- MAHLE eShifters handlebar-mounted controllers allow rider to cycle through assist modes without taking hands off the handlebar
- On-bike cargo features including rack mounts and Three-Pack mounts on fork
- Massive 700c x 50mm tire clearance (max 42mm tire clearance with fenders)
- Fender mounts
- MAHLE X30 system certified to UL 2849:2020 standards; MAHLE battery certified to UL 2271 standards
| Rear Axle | 10x1 Threaded x 135mm |
| Brake Type | Disc |
| Battery Power (Wh) | 237 |
| Battery Power (V) | 36 |
| Fork Type | Rigid |
| Fork Material | Carbon |
| Frame Material | Aluminum |
| Front Axle | 12mm Thru x 100mm |
| Drive Type | Hub-Drive |
| Ebike Class | 1 |
| Charger Included | Yes |
| Battery | Li-Ion |
| Assist Levels | 3 |
| Motor Torque (Nm) | 45 |
| Charge Time (h) | 3.5 |
| Gross Payload (Lbs) | 350 |
| Assist Speed (Mph) | 20 |
| Wheel Size | 700c |
