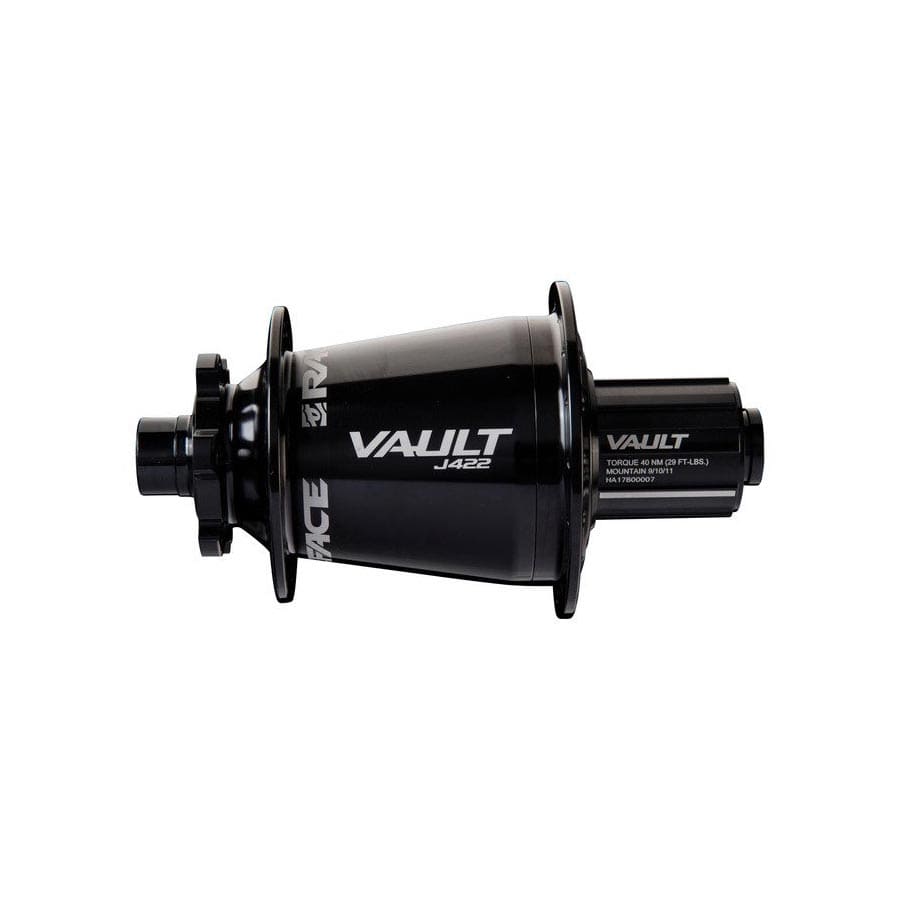

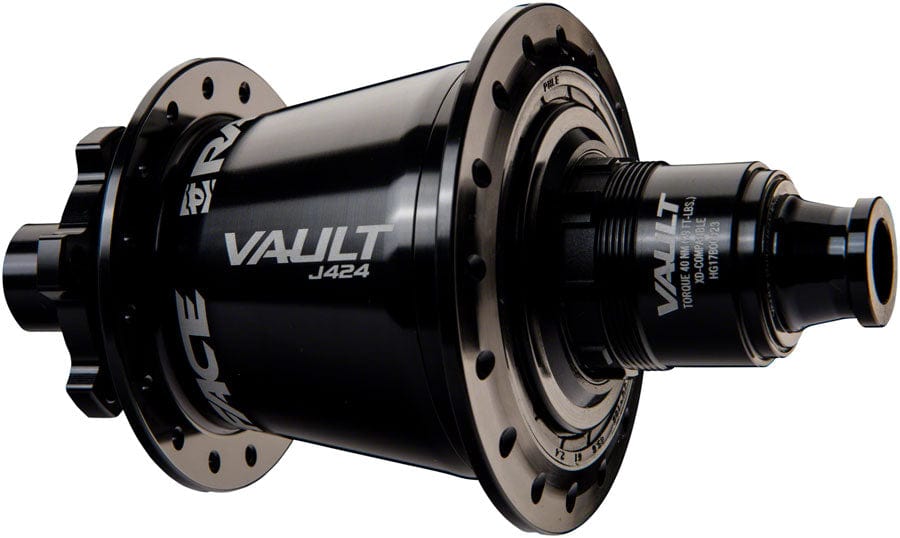

Vault hubs feature an oversized hub shell for increased torsional and lateral stiffness and proven 6902 bearings were selected due to their large ball diameter and durability. A 60 tooth drive ring alternately engages six double tooth pawls giving you 3degree engagement for near-instant power transfer. Wide bearing placement was designed to decrease load on the bearings improving lifespan. Protecting these internals are low-drag labyrinth seals designed specifically for the Vault hubs. Finish it off with tool-free endcap swaps and you have a hub that not only moves faster but adapts faster.
| Flange Diameter, Left | 61.5 |
| Rear Axle | 12mm Thru x 148mm |
| Flange Diameter, Right | 71.5 |
| Cassette Body Type | SRAM XD |
| Center to Flange, Left | 36.5 |
| Center to Flange, Right | 23 |
| Color | Black |
| Skewer Included | No |
| Bearing Type | Sealed Cartridge |
| Defined Color | Black |
| Spoke Interface | J-Bend |
| Hub Drilling | 32 |
| Hub/Brake Compatibility | 6-Bolt Disc |
| Axle Size | 12Mm Thru X 148Mm |
