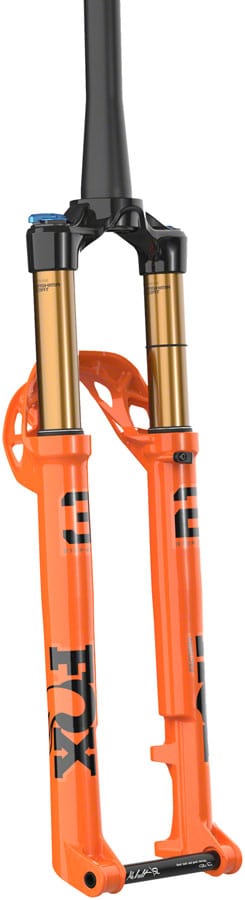

At under 1300g the 32 Step-Cast is a superlight MTB fork and made for marathon racing. This fork features an incredibly light and short travel-specific GRIP SL Damper that not only saves weight but provides an unparalleled ride feel in its class. With a sleek reverse arch this fork also gains 40% stiffness over its predecessorFeatures an incredibly light and short travel-specific GRIP SL Damper that not only saves weight but provides an unparalleled ride feel in its class Riders experience a supple stroke with an optimized pedal-to-bump efficiency as well as a smooth blowoff force in lockout mode to reduce rider fatigue The rear arch matrix was generatively designed to increase stiffness by 40% while minimizing the weight penalty The premium 7000 Series aluminum zero-offset crown supports angled upper tubes that not only contributes to the 32 Step-Cast's stiffness but when combined with the ultra-light steerer tube saves approximately 20g over the previous model Fitted with the proven and reliable FLOAT EVOL air spring Kabolt SL thru-axle drops an additional 12g over the standard Kabolt axle by eliminating the additional weight of the axle nut and decreasing the flange diameter Kashima Coating on upper tubes for added durability
| Steerer Type | Tapered |
| Lockout Switch | Crown |
| Brake Type | Post Mount 160 |
| Negative Spring | Air |
| Travel (mm) | 100 |
| Offset | 44 |
| Axle to Crown Length | 503.7 |
| Front Axle | 15mm Thru x 110mm |
| Maximum Tire Width | 58 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Color | Shiny Orange |
| Crown Race | 40 |
| Wheel Size | 29" |
| External Adjustments | Rebound Damping |
| Defined Color | Orange |
| Positive Spring | Air |
| keyword search | FOX MY25 |
| Stanchion Diameter | 32 |
| Steerer Tube Length (mm) | 264 |
