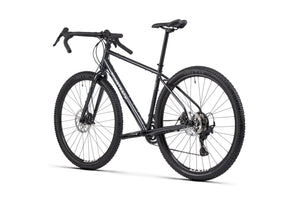

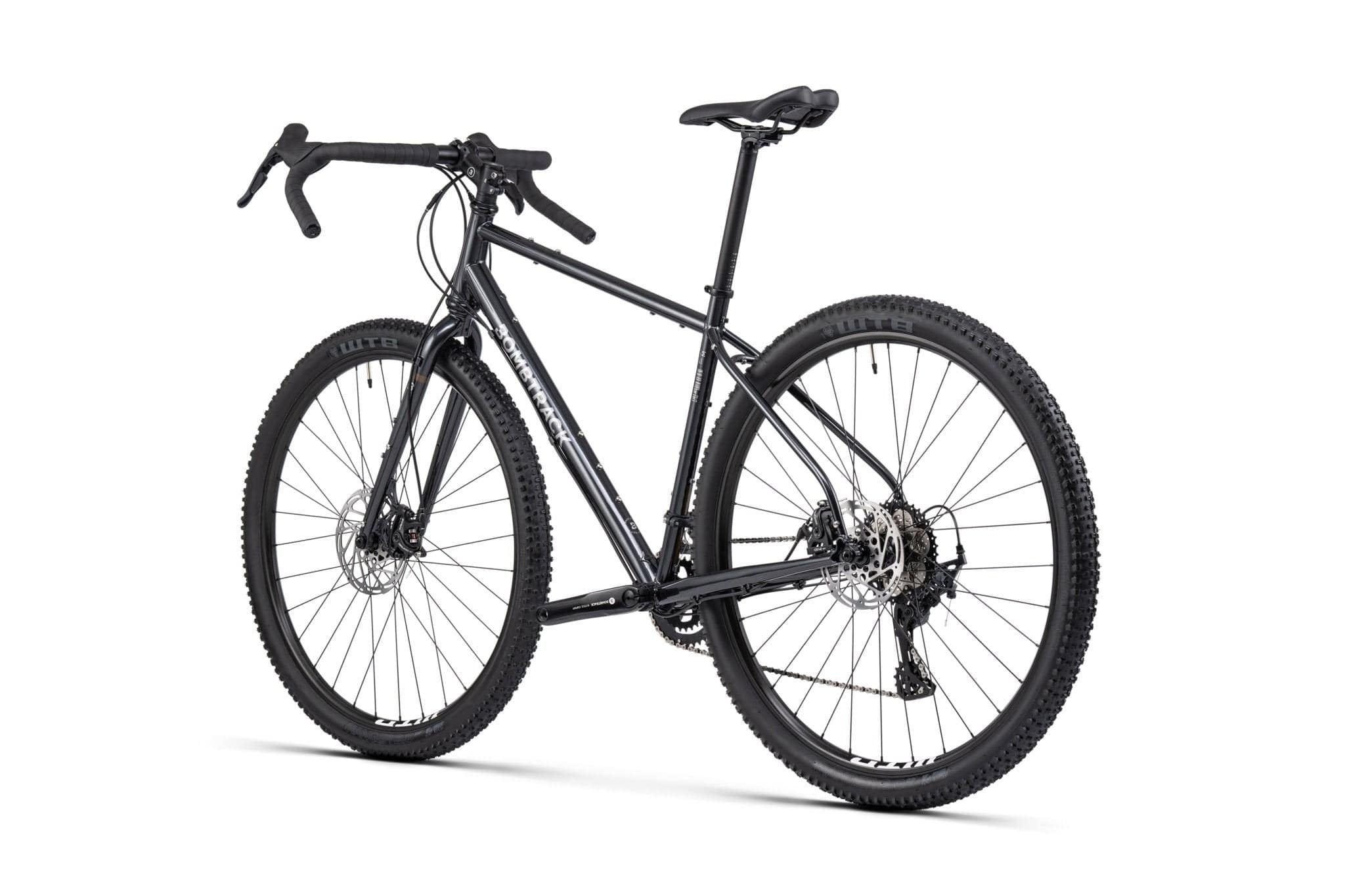

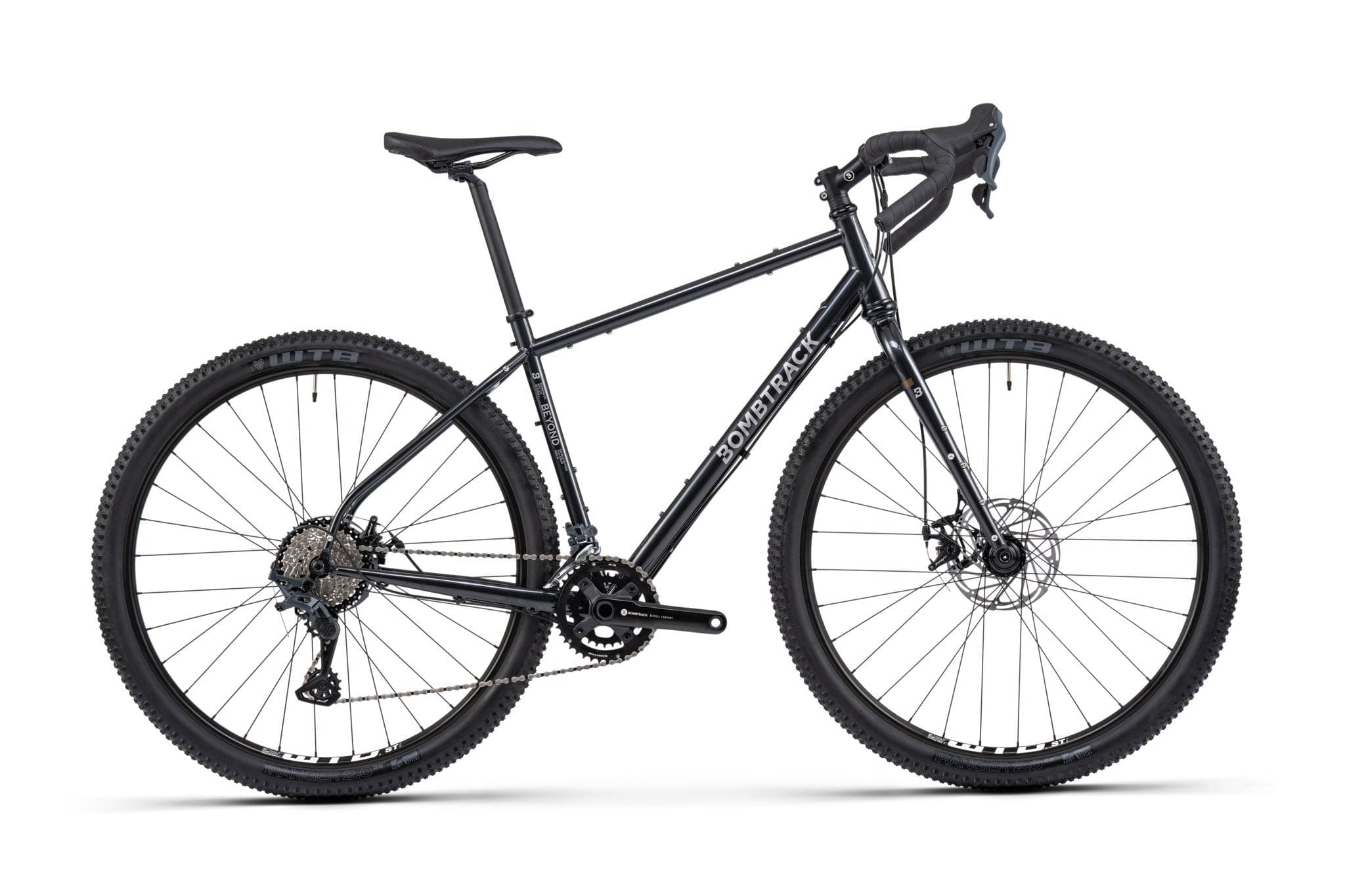

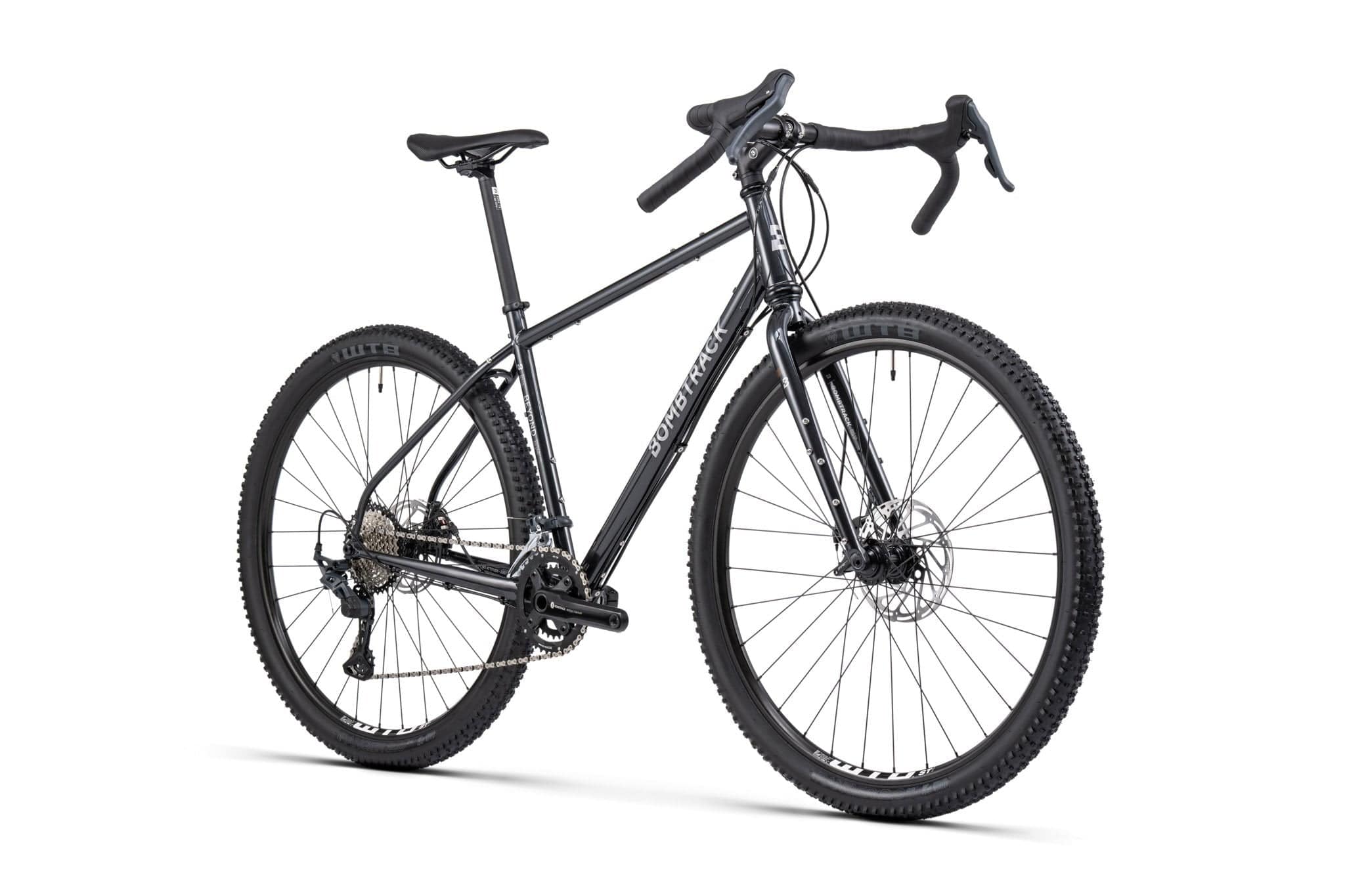

Bombtrack Beyond 1 Touring Bicycle





Our Beyond 1 is a drop bar, off-road adventure bike designed to take the rider wherever the compass guides them. The frame and fork are both made from reliable and lightweight 4130 double butted crmo tubing with a multitude of bottle and rack mounting options, joined to dropouts for thru-axles. Internal dynamo light cable routing also eliminates the possibility of snagging. Shifting is from Microshift and their new 2 x 10 Sword set mated with an 11 - 38T cassette and 40 / 28T chainset. Braking duties are handled by TRP Spyre C mechanical callipers. The WTB rims are tubeless-ready and both 27.5’’ (XS-S) and 29’’ sizes use the awesome all-condition WTB Ranger TCS tyres. All you need now is to choose a destination, pack up and head off.
- Frame: 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell
- Fork: 4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing
- Levers: Soon to be released Microshift dropbar groupset
- Shifter: Soon to be released Microshift 2x10 dropbar groupset

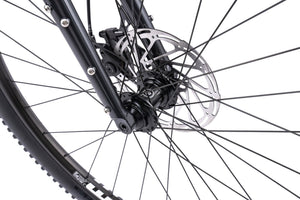

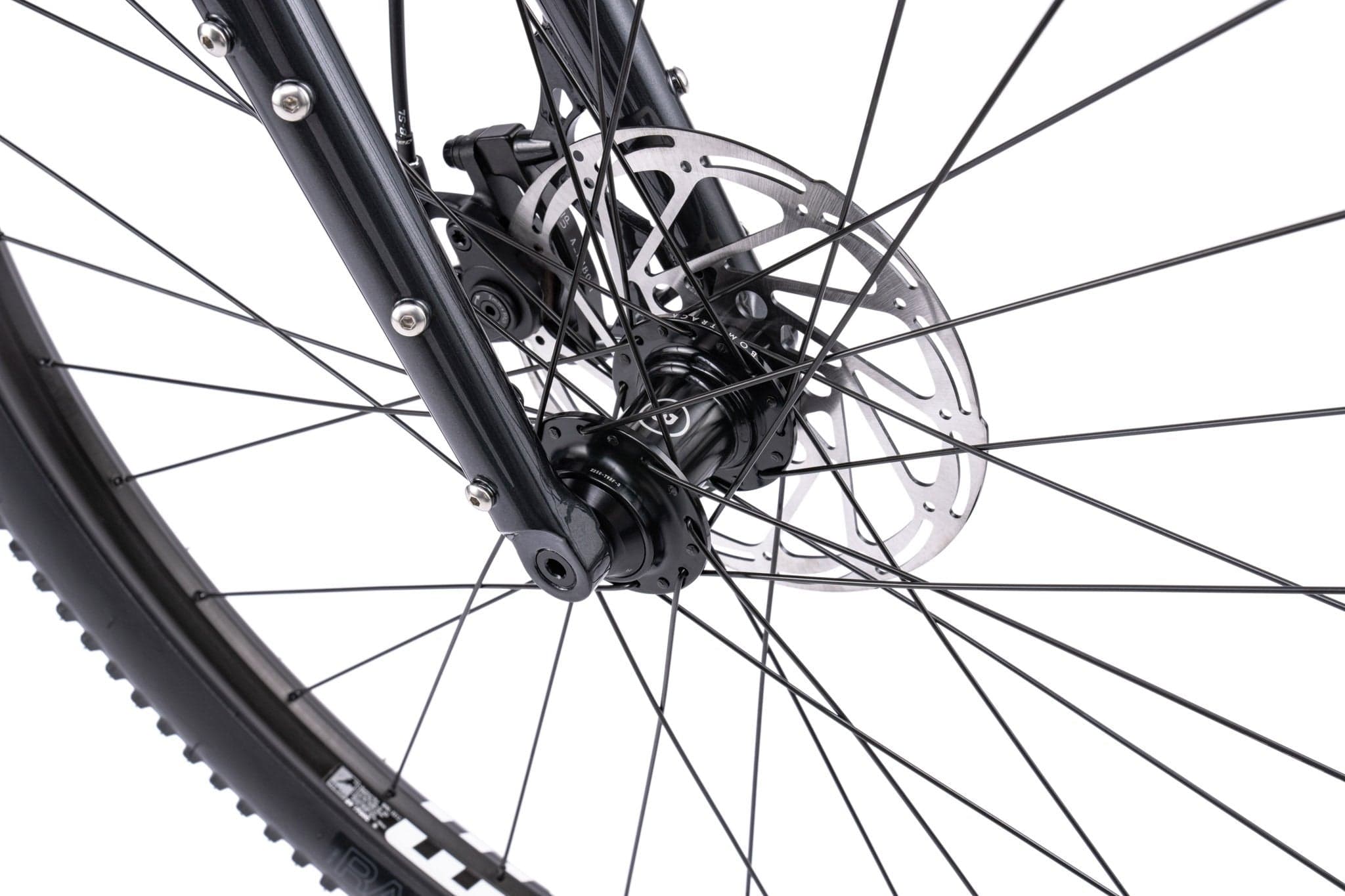

- Brakes: TRP Spyre C mechanic disc brakes
- Crankset: Bombtrack Ames forged aluminium crank, 24 mm spindle
- Bottom Bracket: BSA sealed BB, external cups
- Cassette: Microshift 10-speed, 11 - 38 T
- Rear deraileur: Soon to be released Microshift rear derailleur
- Hubs: Seido Arc sealed hub, 11-speed, 6-bolt disc
- Rims: WTB ST i23 double wall, TCS 2.0, 32h
- Tires: WTB Ranger TCS Light / Fast Rolling XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready
- Weight: 12.9 kg
