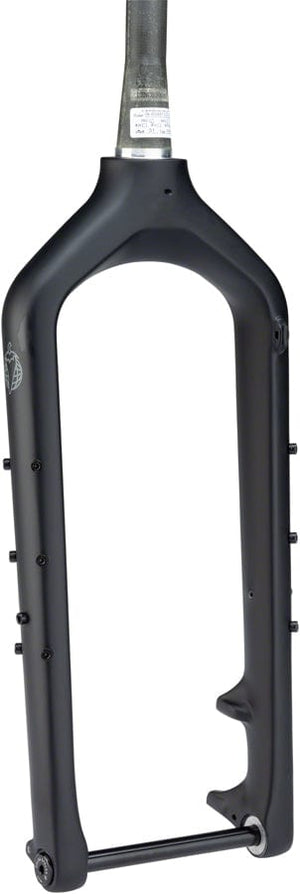

The Kingpin Deluxe fork is perfect for fat bike expeditions keeping you nimble even when fully loaded. Dual Three-Pack mounts on each leg let you attach water bottles or Anything Cages and mid-blade mounts fit low rider racks for panniers. Or ditch the gear and hit the trails with an ultra-light and responsive fork.High modulus carbon fiber construction Tapered 1-1/8” to 1-½” steerer tube 160 minimum rotor size; 203mm maximum rotor size Dual sets of Three-Pack mounts on each fork leg for Anything Cages or water bottles Mid-blade mounts for low rider racks Internal routing for 150mm spaced dynamo hubs Maximum Tire / Rim sizes: 26 x 5” 27.5 x 4.0” 29 x 3.0” 150 x 15 mm thru axle included Front Axle Size: 15 x 198L TP=1.5 TL=9
Steerer Type | Tapered |
Brake Mount (Fork) | Post Mount 160 |
Offset | 51 |
Material | Carbon |
Axle to Crown Length | 483 |
Front Axle | 15mm Thru x 150mm |
S.H.I.S. Stem Clamp Diameter | 28.6 |
Color | Matte Carbon |
Crown Race | 40 |
Wheel Size | 29+ |
Defined Color | Black |
Steerer Tube Length (mm) | 260 |
