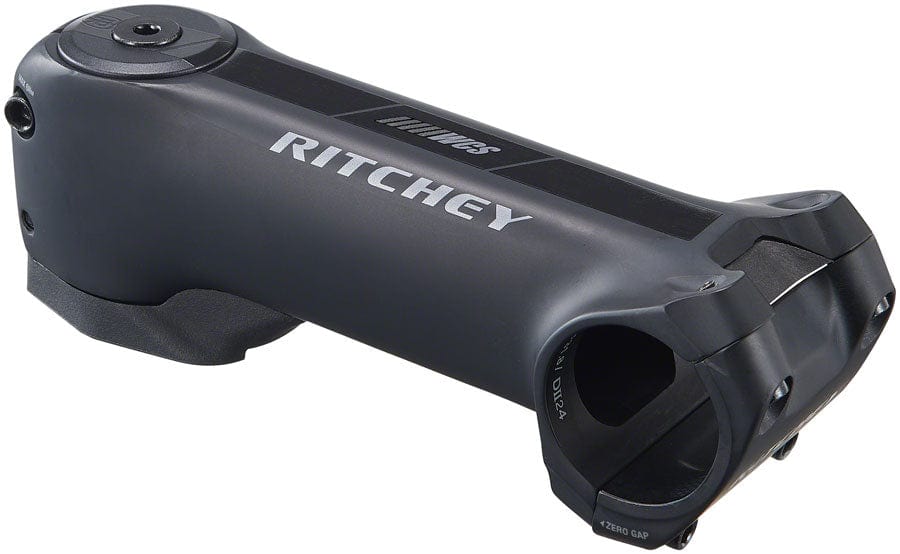

The WCS Switch stem was designed to stealthily conceal cables into the headset and frame. Up to three cables – such as for the rear brake shifter electronic drivetrain or even dropper post - are effortlessly integrated with the Ritchey Switch System spacers and Switch headset (both sold separately) to cleanly route the hidden cables into the frame.The Ritchey Switch System is an innovative integrated system designed to easily conceal internally routed cables wires and hydraulic lines from the handlebar into bicycle frames with straight 1.5" head tubes together with tapered 1-1/8" – 1.5" forks. The Switch System consists of three elements: Switch Headset Headset Spacers and Adapters (Sold Separately) Features the tried-and-true Ritchey C220 handlebar clamp design with an increased width for additional stiffness and rotated clamping area a few degrees downward to create a flatter and more aerodynamic top stem section The front of the stem includes a reversible accessory mount designed to accommodate accessories such as cycling computers cameras and power meter head units this mount is completely hidden within the front clamp of the stem until you decide to mount your favorite accessory 2014 alloy and 3D Net Shape Forging - Process that forces the material grain to follow the product shape for greater structural strength Stainless steel black hardware Matching compression cap and cable guide included
| Stem Angle (deg) | 84 |
| Length | 100, 110, 120, 60, 70, 80, 90 |
| Material | Alloy |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Bar Clamp Diameter (mm) | 31.8 |
| Color | Black |
| Weight | 175 |
| Defined Color List | Black |
| Steerer Clamp Diameter | 1-1/8" |
| Stack Height | 50 |
