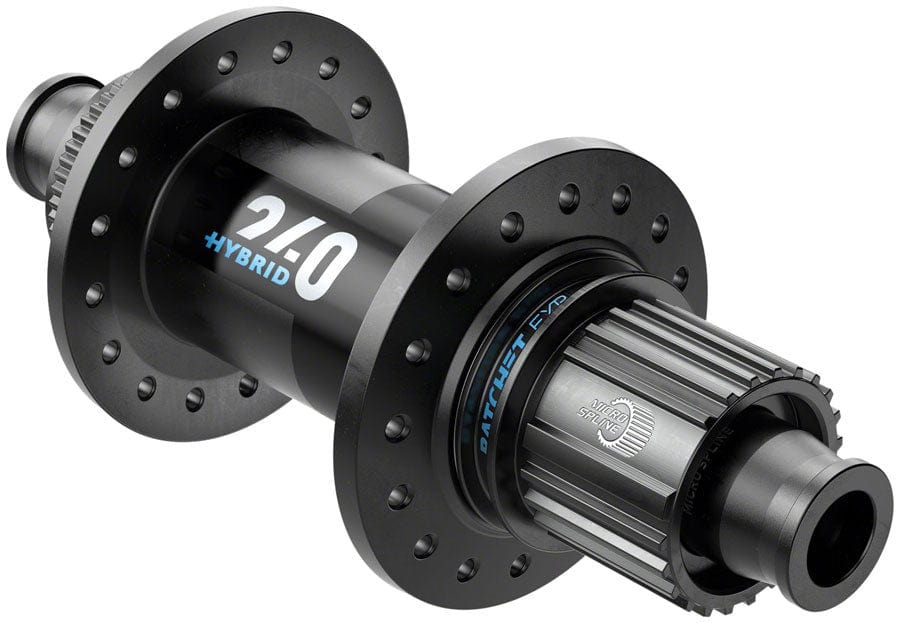

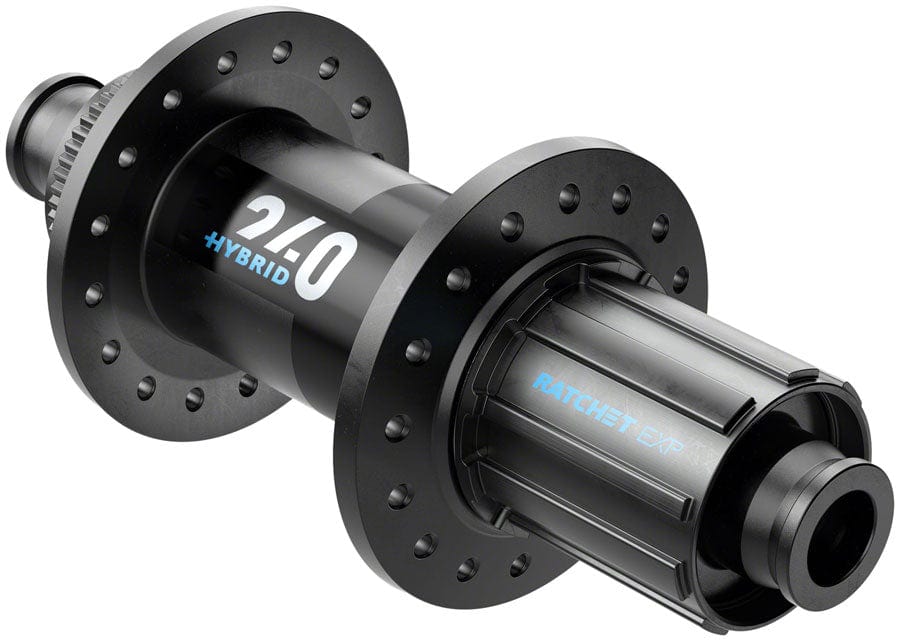

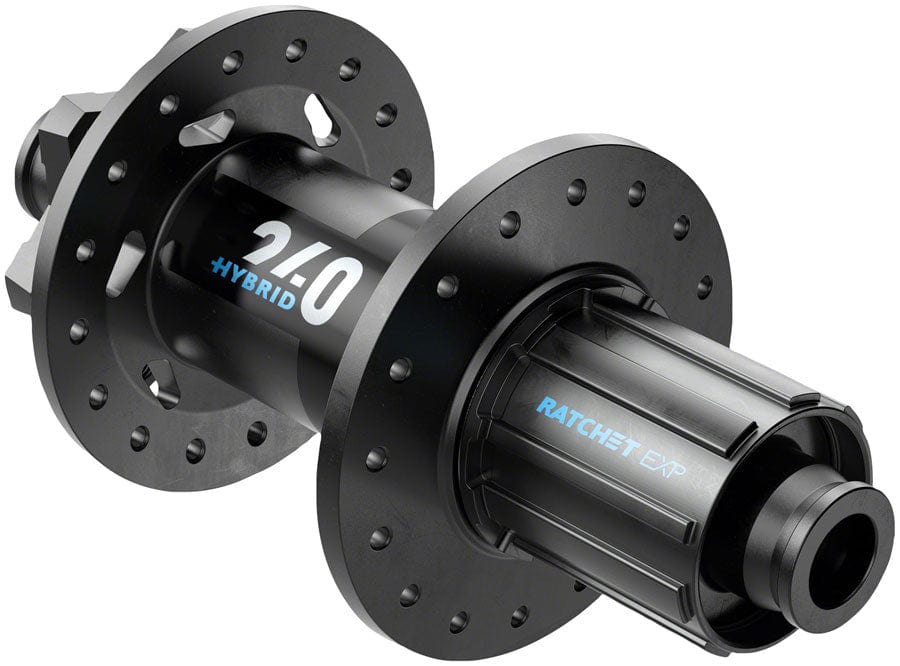

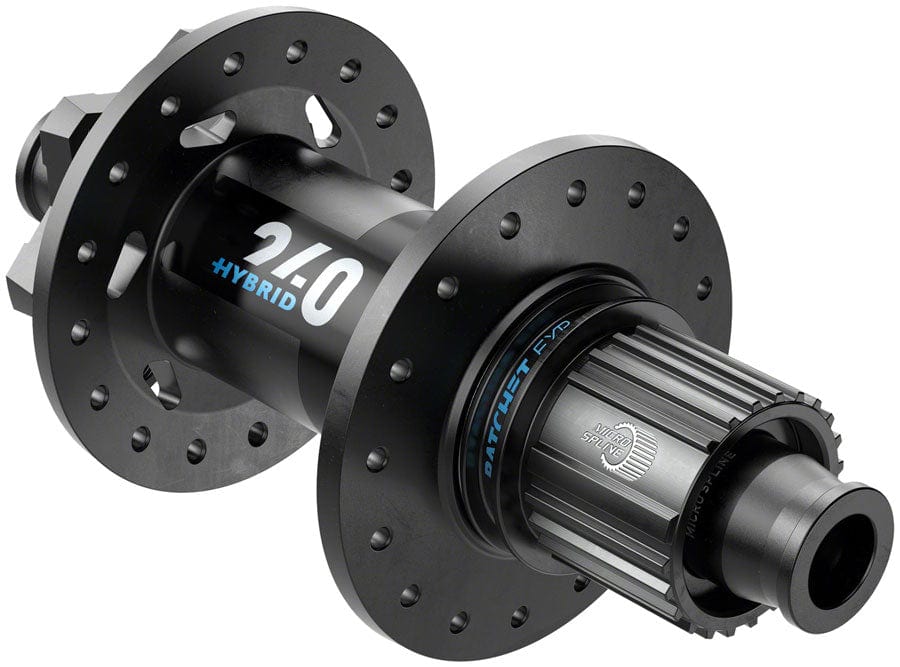

The 240 Hybrid hub is built for an extended eMTB adventure. The unique design incorporates special components like the DTSwiss Ratchet EXP OS system with 30 teeth to ensure reliable power transmission from both the rider and the motor to the ground. The drive side bearing is bigger and the hub flange is enlarged. The spoke holes are expanded purpose-built for 2.34 mm DT Swiss spokes which deliver enhanced resistance to acceleration and braking torques. Crafted from hardened steel the freehub system further reinforces the hub's resilience allowing for extended and trouble-free e-bike rides.Increased wall thickness Oversize spoke interface Oversize hub shell Hybrid specific 24t steel ratchets
| Rear Axle | 12mm Thru x 148mm |
| Cassette Body Type | Shimano HG, Shimano Micro Spline |
| Color | Black |
| Skewer Included | No |
| Bearing Type | Sealed Cartridge |
| Designed for ebike | Yes |
| Defined Color | Black |
| Spoke Interface | J-Bend |
| keyword search | electric bikes, electric bicycle, e-bike, e-bikes |
| Hub Drilling | 32 |
| Hub/Brake Compatibility | 6-Bolt Disc, Center-Lock Disc |
| Axle Size | 12 X 148Mm |
| Ratchet Points | 30Pt |
